CTX-5 Coaxial Units assembly !
Date：2015.04.02
|
||||||
 |
Time to build the quality product - CTX-5 collective pitch coaxial helicopter!
Let's see what we'll do here.

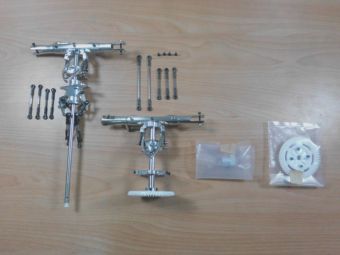

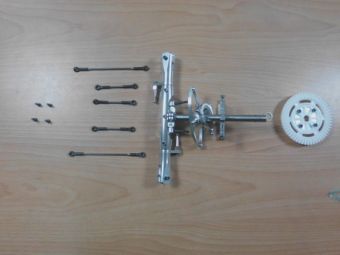

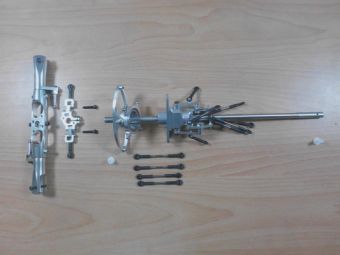

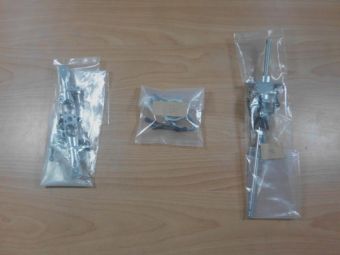

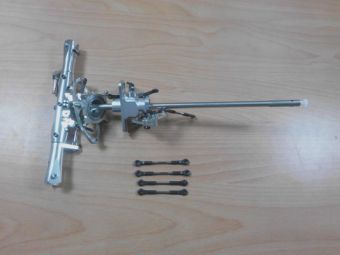

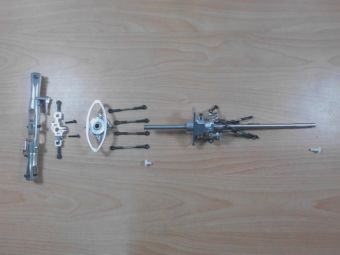

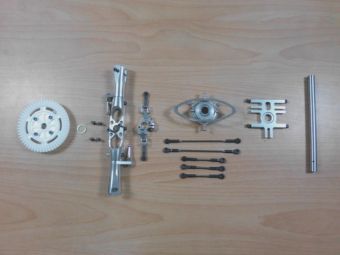

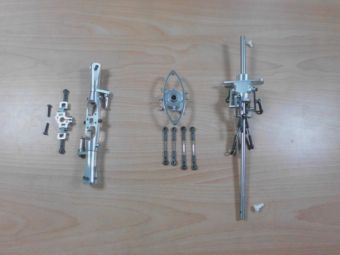

Unit 1 Main Shaft Combination: combine main shaft with swash plate (upper) and rotor head (upper).

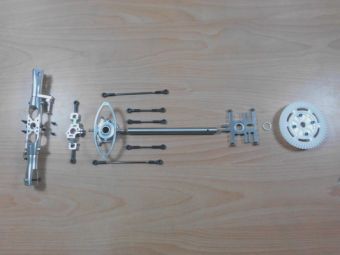

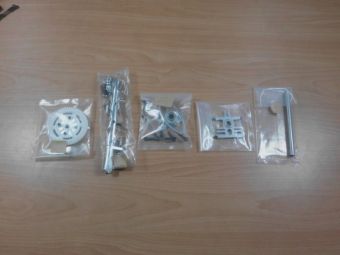

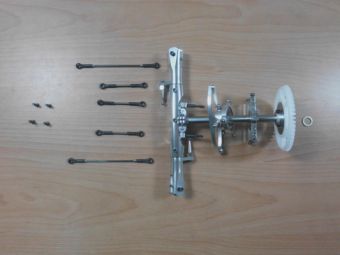

Unit 2 Lower Shaft Combination:

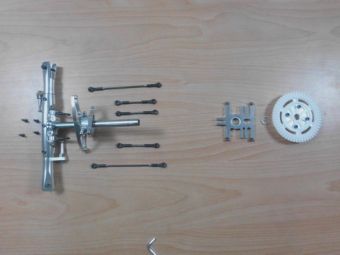

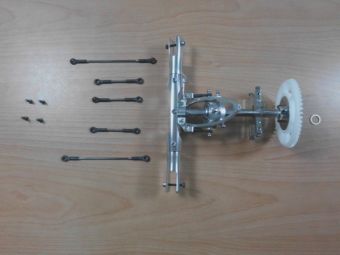

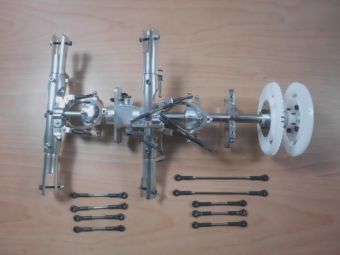

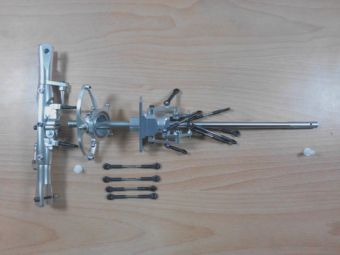

combine lower shaft with bearing holder, swash plate (lower), rotor head (lower), and main bevel gear.

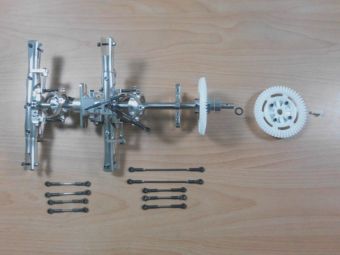

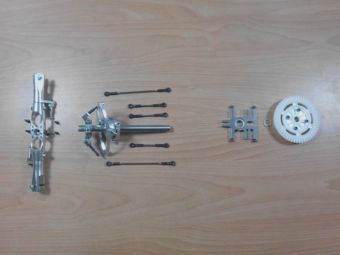

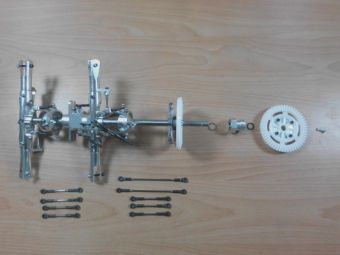

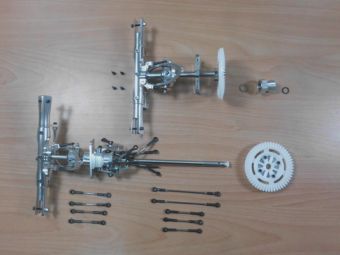

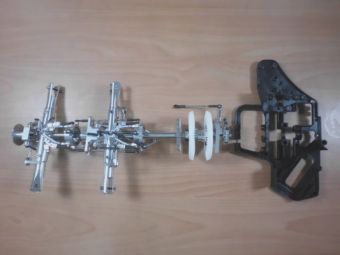

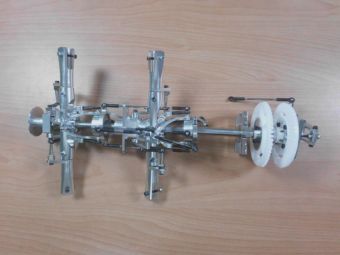

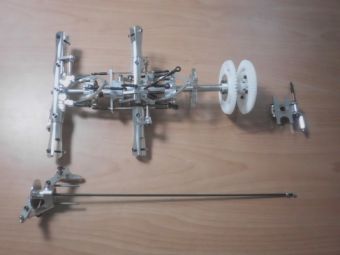

Unit 3 Spindle Combination: combine upper rotor, lower rotor, gear hub and main bevel gear.

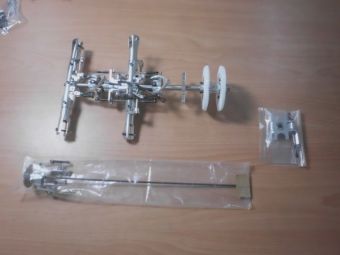

Unit 4 Yaw Mixer Combination: combine roto kit with yaw mixer & yaw rod trainer.

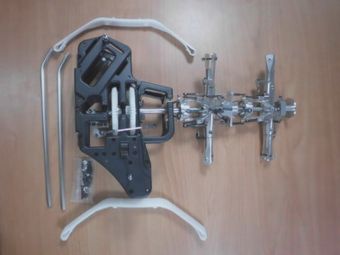

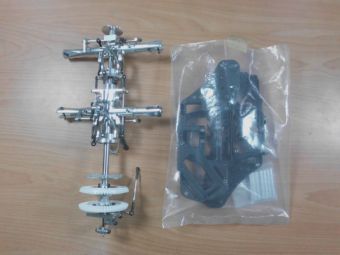

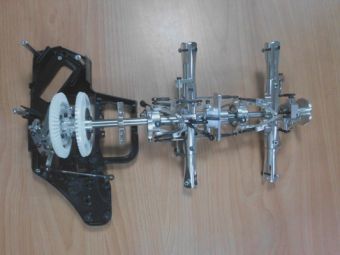

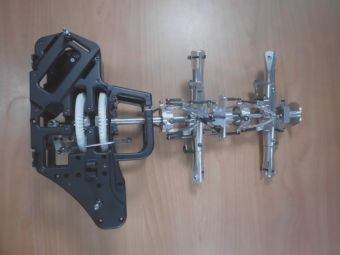

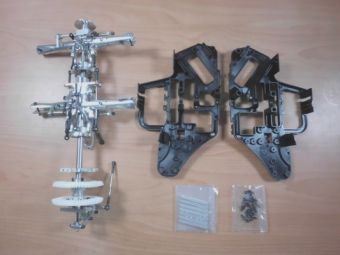

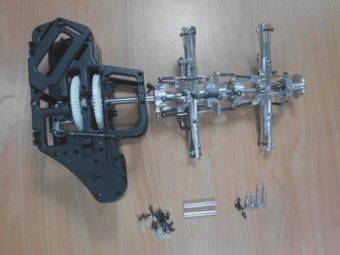

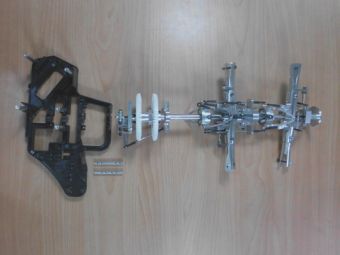

Unit 5 Final Assembly: first step combine base mechanic with main frame

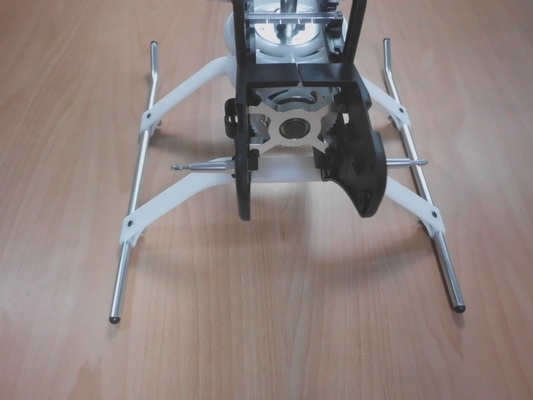

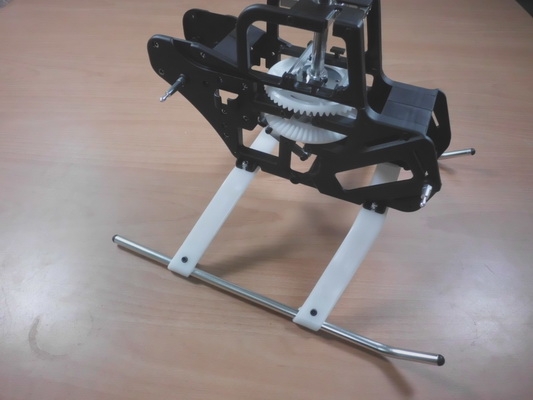

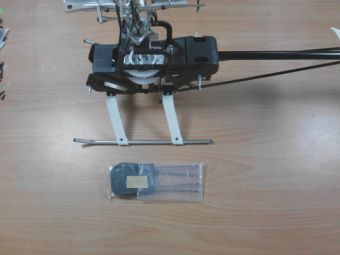

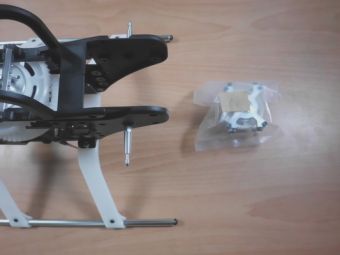

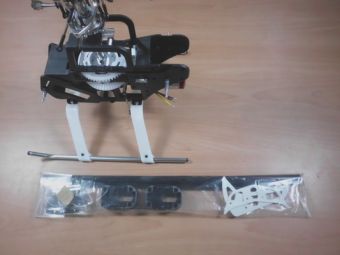

the next, to assemble landing skid

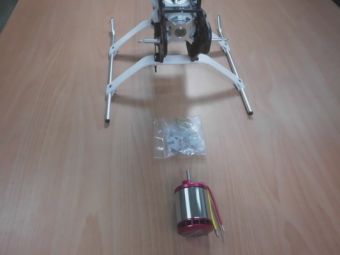

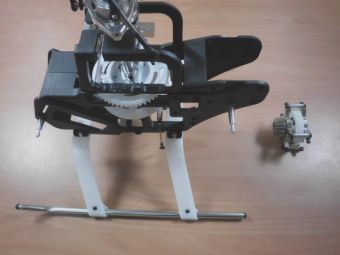

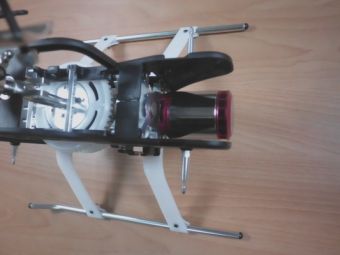

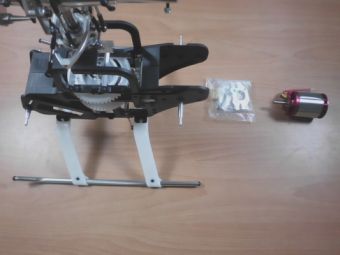

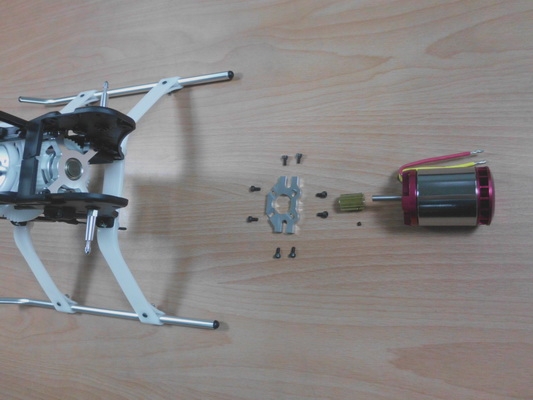

and then install gear reducer、motor mount、motor

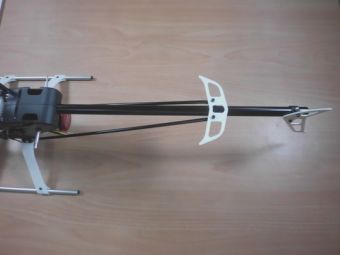

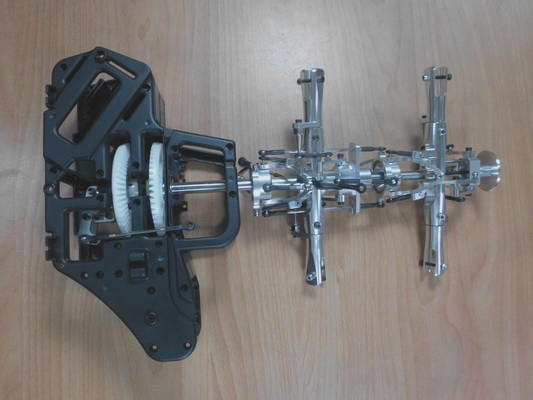

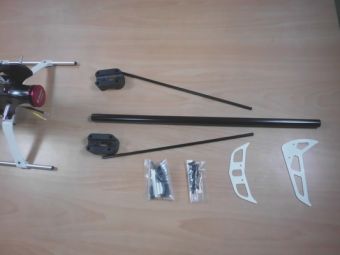

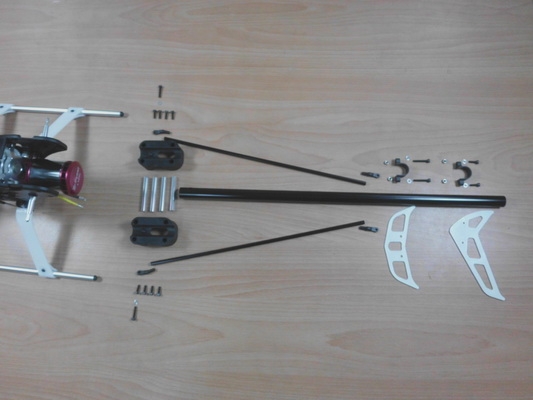

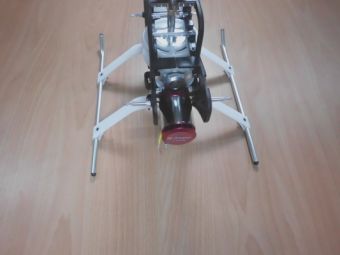

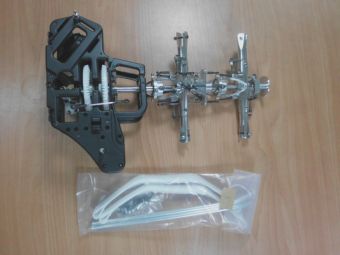

Once the tail unit is assembled, look at the completed main mechanic !

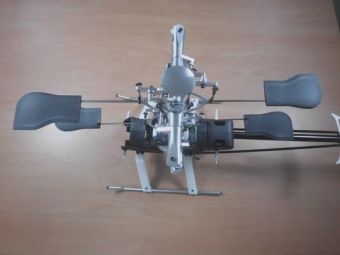

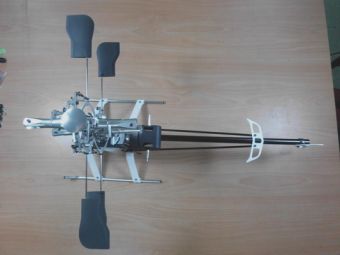

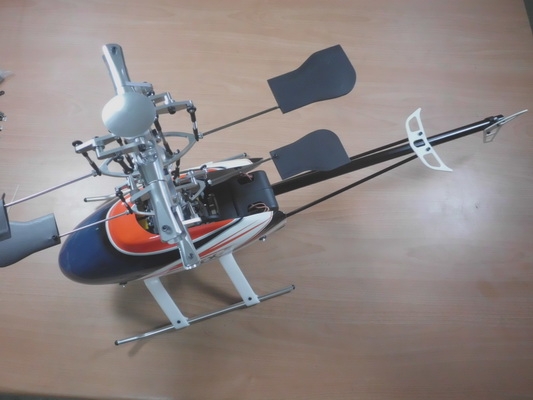

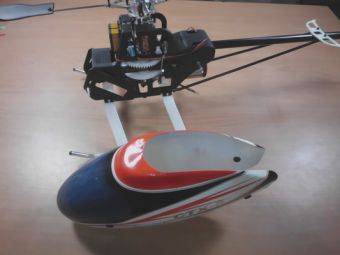

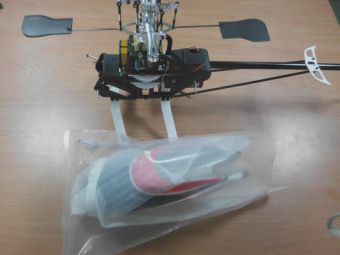

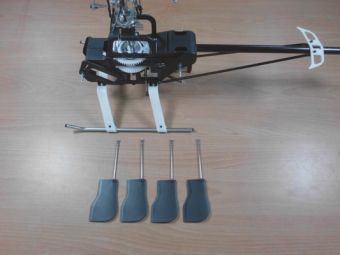

Unit 6 Peripheral Equipment Installation: Accomplished ! Just only install the flybar paddle and canopy.
