UAV / UAS>Intermeshing rotors Helicopter>Intermeshing rotors Mechanical

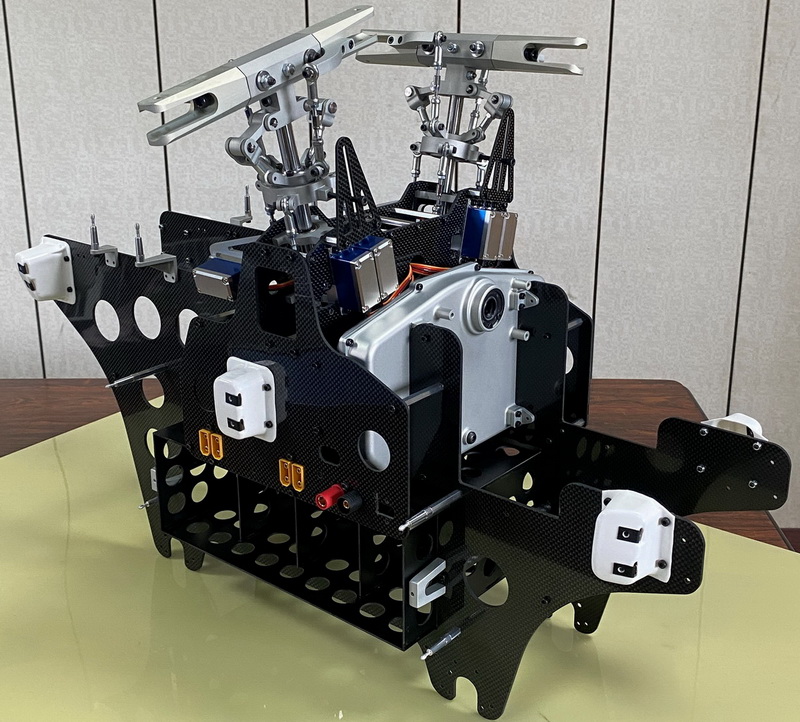

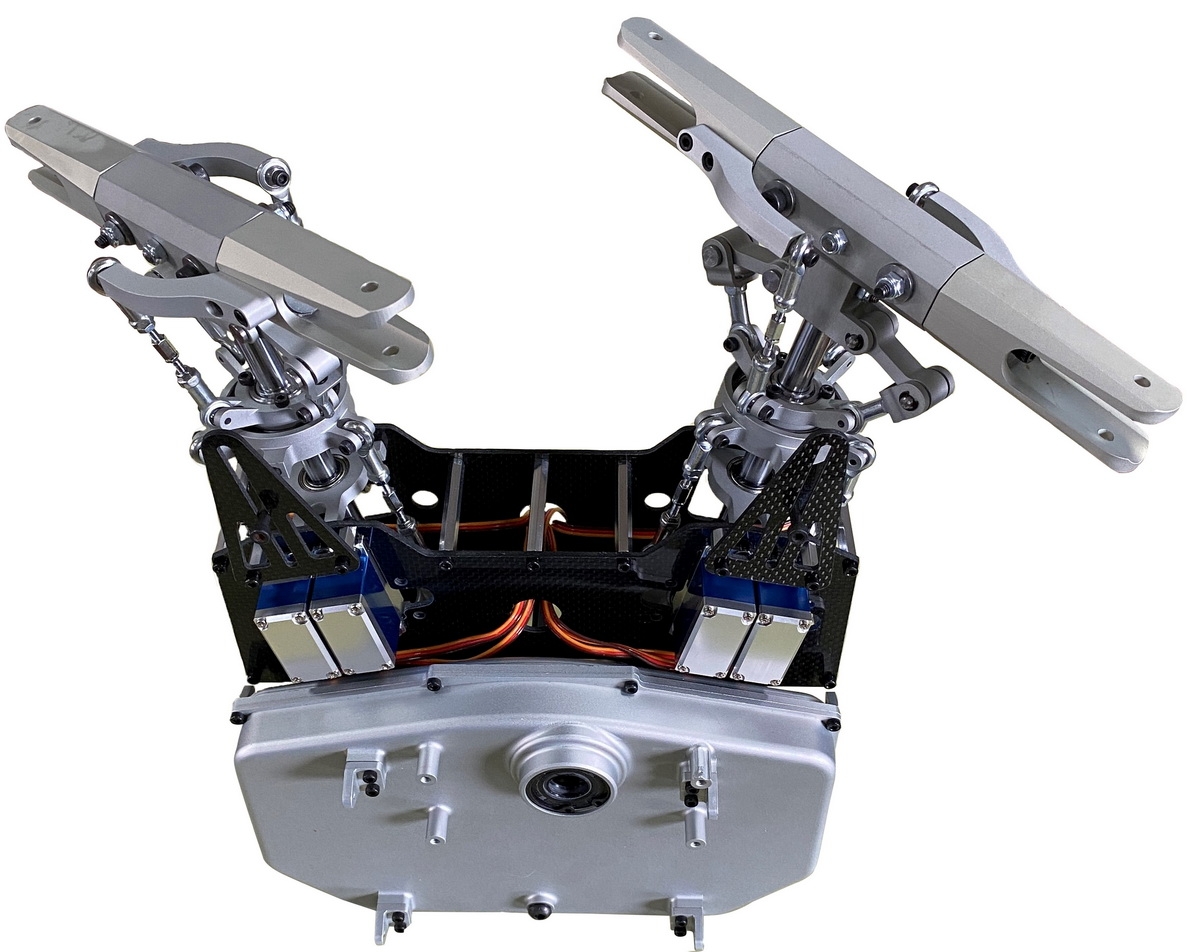

| Intermesh Rotors Mechanical Specification Rotary system : Flettner double rotor system 2 * 2 (4 blades) Rotor Diameter : 2200 mm Blades : L:1000mm Carbon fiber composite semi-symmetric blades Power plant : option for E-power or fuel engine power Gear Box : 2-stage reduction , first stage 1:305 , second stage 1:2 Both gearboxes are sealed oil bath type or customized Rotor output : rotates with the autorotation Servos : swashplate type 120° , each rotor with 3 servos Main Shafts Diameter : 12mm for right rotor and left rotor Dimensions L/W/H : x x mm Empty weight : 3.6 kg take off weight : 60 kg Mixer controller : 1 pcs The servos and blades are optional , not included in the mechanical . .JPG) |
 |
 |
